FPGA, A/D & D/A Boards

Direct RF vs. IF: Receive-Application Architecture

+ Agilex MCP1 RFSoC Solutions
Model Form Factor DDC Qty A/D Qty A/D Bits A/D Sample Freq. Max Input Freq. DUC Qty D/A Qty D/A Bits D/A Sample Freq. SOSA View Product Manual
DRF2580 SOM 4 4 10 32 GHz 32 GHz 4 4 10 32 GHz

View

Contact Us

DRF5580 3U VPX 4 4 10 32 GHz 32 GHz 4 4 10 32 GHz Yes

View

Contact Us

DRF7580 PCIe 4 4 10 32 GHz 32 GHz 4 4 10 32 GHz   Coming soon

Contact Us

DRF4580 SFF Box 4 4 10 32 GHz 32 GHz 4 4 10 32 GHz   Coming soon

Contact Us

DRF4580L SFF Module 4 4 10 32 GHz 32 GHz 4 4 10 32 GHz

View

Contact Us

4806 Carrier Design Kit

Contact Us


+ Stratix 10 AX SoC FPGA
Model Form Factor DDC Qty A/D Qty A/D Res. A/D Sample Freq. Max Input Freq. D/A Qty D/A Res. D/A Sample Freq. Family SOSA View Product Manual
DRF3182 3U VPX 8 4 10 51.2 GSPS 18 GHz 4 10 51.2 GSPS

View

Contact Us

+ Ultrascale+ RFSoC
Model Form Factor DDC Qty A/D Qty A/D Res. A/D Sample Freq. Max Input Freq. DUC Qty D/A Qty D/A Res. D/A Sample Freq. Family SOSA View Product Manual
7050 PCIe 8 8 12 4 GHz 4 GHz 8 8 14 6.4 GHz Quartz

View

Contact Us

6350 SFF 8 8 12 4 GHz 4 GHz 8 8 14 6.4 GHz Quartz

View

Contact Us

5550 3U VPX 8 8 12 4 GHz 4 GHz 8 8 14 6.4 GHz Quartz Yes

View

Contact Us

5950 3U VPX 8 8 12 4 GHz 4 GHz 8 8 14 6.4 GHz Quartz

View

Contact Us

6350S SFF 8 8 12 4 GHz 4 GHz 8 8 14 6.4 GHz Quartz

View

Contact Us

6001 QuartzXM 8 8 12 4 GHz 4 GHz 8 8 14 6.4 GHz Quartz

View

Contact Us

6003 QuartzXM 8 8 14 5 GHz 6 GHz 8 8 14 9.85 GHz Quartz

View

Contact Us

6353S SFF 8 8 14 5 GHz 6 GHz 8 8 14 9.85 GHz Quartz

View

Contact Us

7053 PCIe 8 8 14 5 GHz 6 GHz 8 8 14 9.85 GHz Quartz

View

Contact Us

6353 SFF 8 8 14 5 GHz 6 GHz 8 8 14 9.85 GHz Quartz

View

Contact Us

5553 3U VPX 8 8 14 5 GHz 6 GHz 8 8 14 9.85 GHz Quartz Yes

View

Contact Us

5953 3U VPX 8 8 14 5 GHz 6 GHz 8 8 14 9.85 GHz Quartz

View

Contact Us

6353L SFF 8 8 14 5 GHz 6 GHz 8 8 14 9.85 GHz Quartz

View

Contact Us

+ Virtex Ultrascale+
Model Form Factor DDC Qty A/D Qty A/D Res. A/D Sample Freq. Max Input Freq. D/A Qty D/A Res. D/A Sample Freq. Family SOSA View Product

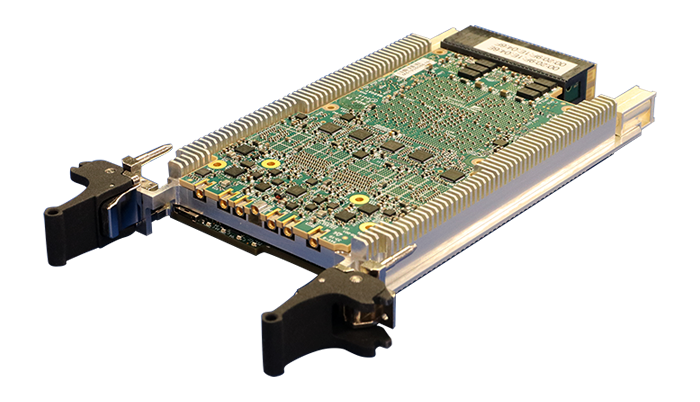

DCM3220 3U VPX   2 12 6.4 GHz   2 12 6.4 GHz

View

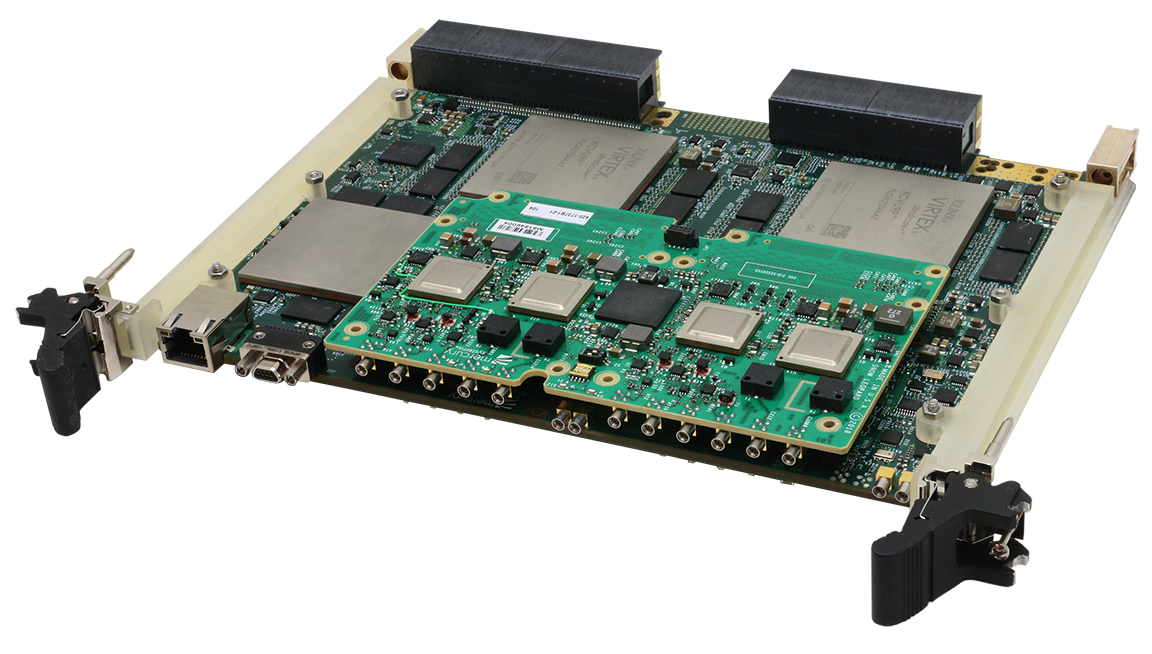

DCM6222 6U VPX   2 12 6.4 GHz   2 12 6.4 GHz

View

DCM6122 6U VPX   4 12 3.2 GHz   4 12 3.2 GHz

View

DCM6212 6U VPX   2 12 6.4 GHz   2 12 6.4 GHz

View

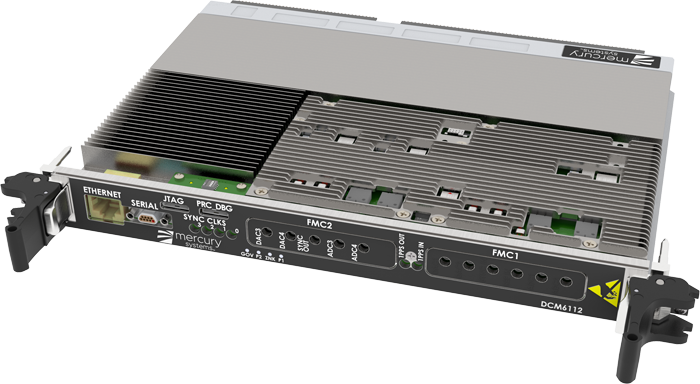

DCM6112 6U VPX   4 12 3.2 GHz   4 12 3.2 GHz

View

5585 3U VPX 8 8 16 250 MHz 700 MHz       Jade Yes

View

+ Kintex Ultrascale
Model Form Factor DDC Qty A/D Qty A/D Res. A/D Sample Freq. Max Input Freq. DUC Qty D/A Qty D/A Res. D/A Sample Freq. Family View Product Manual

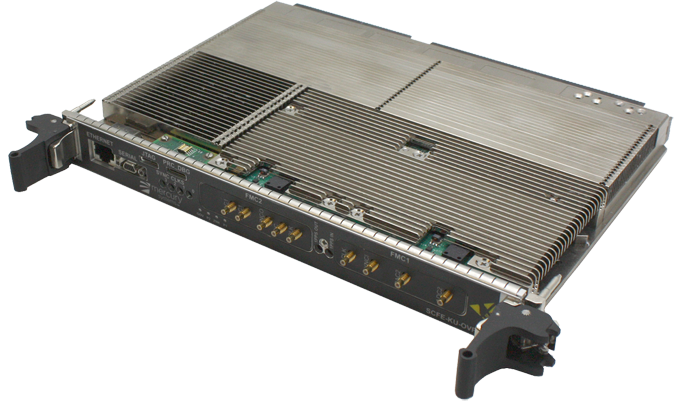

DCM6111 6U VPX   2 12 2.5 GHz     2 12 2.5 GHz

View

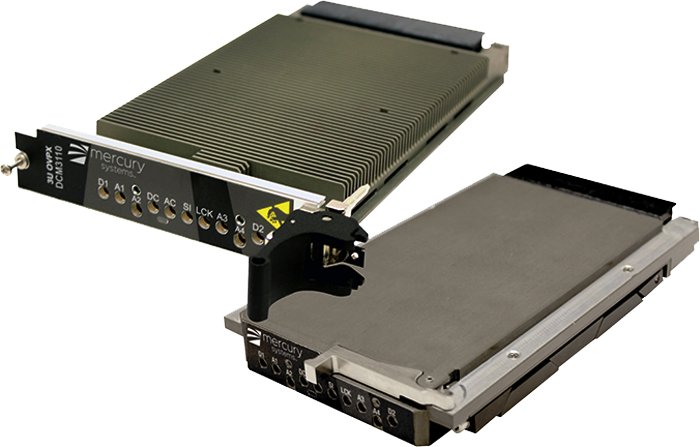

DCM3110 3U VPX   4, 2 12 3 GHz, 2 GHz     2 12 3 GHz

View


5983-320 3U VPX 2 2 14 3 GHz 3 GHz 2 2 16 2.8 GHz JadeFX

View

Contact Us

5983-313 3U VPX 4 4 16 250 MHz 700 MHz 1 2 16 800 MHz JadeFX

View

Contact Us

5983-324 3U VPX   4 16 500 MHz 500 MHz 4 4 16 2 GHz JadeFX

View

Contact Us

5983-317 3U VPX 8 8 16 250 MHz 700 MHz         JadeFX

View

Contact Us

54141A 3U VPX 2 2 12 6.4 GHz 8.1 GHz 2 2 14 6.4 GHz Jade

View

Contact Us

71821 XMC 3 3 16 200 MHz   1 2 16 800 MHz Jade

View

Contact Us

54821 3U VPX 3 3 16 200 MHz   1 2 16 800 MHz Jade

View

Contact Us

58821-57821 6U VPX 6, 3 6, 3 16 200 MHz   2, 1 4, 2 16 800 MHz Jade

View

Contact Us

78821 PCIe 3 3 16 200 MHz   1 2 16 800 MHz Jade

View

Contact Us

71131 XMC 8 8 16 250 MHz           Jade

View

Contact Us

52131 3U VPX 8 8 16 250 MHz           Jade

View

Contact Us

58131-57131 6U VPX 16, 8 16, 8 16 250 MHz           Jade

View

Contact Us

78131 PCIe 8 8 16 250 MHz           Jade

View

Contact Us

71141 XMC 2 2 12 6.4 GHz 8.1 GHz 2 2 14 6.4 GHz Jade

View

Contact Us

52141 3U VPX 2 2 12 6.4 GHz 8.1 GHz 2 2 14 6.4 GHz Jade

View

Contact Us

58141-57141 6U VPX 4, 2 4, 2 12 6.4 GHz 8.1 GHz 4, 2 4, 2 14 6.4 GHz Jade

View

Contact Us

78141 PCIe 2 2 12 6.4 GHz 8.1 GHz 2 2 14 6.4 GHz Jade

View

Contact Us

71841 XMC 2 2 12 6.4 GHz 1.75 GHz         Jade

View

Contact Us

52841 3U VPX 2 2 12 6.4 GHz 1.75 GHz         Jade

View

Contact Us

58841-57841 6U VPX 4, 2 4, 2 12 6.4 GHz 1.75 GHz         Jade

View

Contact Us

78841 PCIe 2 2 12 6.4 GHz 1.75 GHz         Jade

View

Contact Us

71851 XMC 2 2 12 500 MHz   1 2 16 800 MHz Jade

View

Contact Us

52851 3U VPX 2 2 12 500 MHz   1 2 16 800 MHz Jade

View

Contact Us

54851 3U VPX 2 2 12 500 MHz   1 2 16 800 MHz Jade

View

Contact Us

58851-57851 6U VPX 4, 2 4, 2 12 500 MHz   2, 1 4, 2 16 800 MHz Jade

View

Contact Us

78851 PCIe 2 2 12 500 MHz   1 2 16 800 MHz Jade

View

Contact Us

71861 XMC 4 4 16 200 MHz           Jade

View

Contact Us

52861 3U VPX 4 4 16 200 MHz           Jade

View

Contact Us

58861-57861 6U VPX 8, 4 8, 4 16 200 MHz           Jade

View

Contact Us

78861 PCIe 4 4 16 200 MHz           Jade

View

Contact Us

71891 XMC 2 2 12 500 Mhz 2.1 GHz         Jade

View

Contact Us

54891 3U VPX 2 2 12 500 MHz 2.1 GHz         Jade

View

Contact Us

58891-57891 6U VPX 4, 2 4, 2 12 500 MHz 2.1 GHz         Jade

View

Contact Us

78891 PCIe 2 2 12 500 MHz 2.1 GHz         Jade

View

Contact Us

71132 XMC 64 8 16 250 MHz           Jade

View

Contact Us

52132 3U VPX 64 8 16 250 MHz           Jade

View

Contact Us

58132-57132 6U VPX 128, 64 16, 8 16 250 MHz           Jade

View

Contact Us

78132 PCIe 64 8 16 250 MHz           Jade

View

Contact Us

71862 XMC 32 4 16 200 MHz           Jade

View

Contact Us

52862 3U VPX 32 4 16 200 MHz           Jade

View

Contact Us

58862-57862 6U VPX 64, 32 8, 4 16 200 MHz           Jade

View

Contact Us

78862 PCIe 32 4 16 200 MHz           Jade

View

Contact Us

71865 XMC 766 2 16 200 MHz           Jade

View

Contact Us

52865 3U VPX 766 2 16 200 MHz           Jade

View

Contact Us

58865-57865 6U VPX 1532, 766 4, 2 16 200 MHz           Jade

View

Contact Us

78865 PCIe 766 2 16 200 MHz           Jade

View

Contact Us

+ Virtex-7
Model Form Factor DDC Qty A/D Qty A/D Res. A/D Sample Freq. Max Input Freq. DUC Qty D/A Qty D/A Res. D/A Sample Freq. Family View Product Manual
7070-320 PCIe 2 2 14 3 GHz 3 GHz 2 2 16 2.8 GHz OnyxFX

View

Contact Us

5973-320 3U VPX 2 2 14 3 GHz 3 GHz 2 2 16 2.8 GHz OnyxFX

View

Contact Us

7070-312 PCIe   4 16 250 MHz 700 MHz 1 2 16 800 MHz OnyxFX

View

Contact Us

5973-312 3U VPX   4 16 250 MHz 700 MHz 1 2 16 800 MHz OnyxFX

View

Contact Us

7070-313 PCIe 4 4 16 250 MHz 700 MHz 1 2 16 800 MHz OnyxFX

View

Contact Us

5973-313 3U VPX 4 4 16 250 MHz 700 MHz 1 2 16 800 MHz OnyxFX

View

Contact Us

7070-324 PCIe   4 16 500 MHz 500 MHz 4 4 16 2 GHz OnyxFX

View

Contact Us

5973-324 3U VPX   4 16 500 MHz 500 MHz 4 4 16 2 GHz OnyxFX

View

Contact Us

7070-316 PCIe   8 16 250 MHz 700 MHz         OnyxFX

View

Contact Us

5973-316 3U VPX   8 16 250 MHz 700 MHz         OnyxFX

View

Contact Us

7070-317 PCIe   8 16 250 MHz 700 MHz         OnyxFX

View

Contact Us

5973-317 3U VPX   8 16 250 MHz 700 MHz         OnyxFX

View

Contact Us

71720 XMC   3 16 200 MHz   1 2 16 800 MHz Onyx

View

Contact Us

52720 3U VPX   3 16 200 MHz   1 2 16 800 MHz Onyx

View

Contact Us

58720-57720 6U VPX   6, 3 16 200 MHz   2, 1 4, 2 16 800 MHz Onyx

View

Contact Us

78720 PCIe   3 16 200 MHz   1 2 16 800 MHz Onyx

View

Contact Us

71730 XMC   1 12 1 GHz     1 16 1 GHz Onyx

View

Contact Us

52730 3U VPX   1 12 1 GHz     1 16 1 GHz Onyx

View

Contact Us

58730-57730 6U VPX   2, 1 12 1 GHz     2, 1 16 1 GHz Onyx

View

Contact Us

78730 PCIe   1 12 1 GHz     1 16 1 GHz Onyx

View

Contact Us

71760 XMC   4 16 200 MHz           Onyx

View

Contact Us

52760 3U VPX   4 16 200 MHz           Onyx

View

Contact Us

58760-57760 6U VPX   8, 4 16 200 MHz           Onyx

View

Contact Us

78760 PCIe   4 16 200 MHz           Onyx

View

Contact Us

71721 XMC 3 3 16 200 MHz   1 2 16 800 MHz Onyx

View

Contact Us

52721 3U VPX 3 3 16 200 MHz   1 2 16 800 MHz Onyx

View

Contact Us

58721-57721 6U VPX 6, 3 6, 3 16 200 MHz   2, 1 4, 2 16 800 MHz Onyx

View

Contact Us

78721 PCIe 3 3 16 200 MHz   1 2 16 800 MHz Onyx

View

Contact Us

71741 XMC 2 2 12 3.6 GHz 1.75 GHz         Onyx

View

Contact Us

52741 3U VPX 2 2 12 3.6 GHz 1.75 GHz         Onyx

View

Contact Us

58741-57741 6U VPX 4, 2 4, 2 12 3.6 GHz 1.75 GHz         Onyx

View

Contact Us

78741 PCIe 2 2 12 3.6 GHz 1.75 GHz         Onyx

View

Contact Us

71751 XMC 2 2 12 500 MHz   1 2 16 800 MHz Onyx

View

Contact Us

52751 3U VPX 2 2 12 500 MHz   1 2 16 800 MHz Onyx

View

Contact Us

58751-57751 6U VPX 4, 2 4, 2 12 500 MHz   2, 1 4, 2 16 800 MHz Onyx

View

Contact Us

78751 PCIe 2 2 12 500 MHz   1 2 16 800 MHz Onyx

View

Contact Us

71761 XMC 4 4 16 200 MHz           Onyx

View

Contact Us

52761 3U VPX 4 4 16 200 MHz           Onyx

View

Contact Us

58761-57761 6U VPX 8, 4 8, 4 16 200 MHz           Onyx

View

Contact Us

78761 PCIe 4 4 16 200 MHz           Onyx

View

Contact Us

71791 XMC 2 2 12 500 MHz 2.175 GHz         Onyx

View

Contact Us

52791 3U VPX 2 2 12 500 MHz 2.175 GHz         Onyx

View

Contact Us

58791-57791 6U VPX 4, 2 4, 2 12 500 MHz 2.175 GHz         Onyx

View

Contact Us

78791 PCIe 2 2 12 500 MHz 2.175 GHz         Onyx

View

Contact Us
