ACC9220 Display Cursor Controller with Removable Media

CLICK TO ENLARGE IMAGE

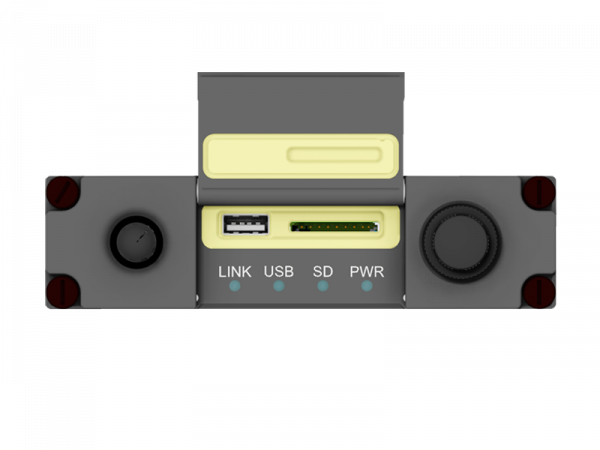

ACC9220 Cursor Controller and Removable Data Media Server

The Cursor Controller, part number ACC9220, provides user interface to the Mission Management Suite or other software via an 8-way joystick with twist and press and dual concentric knob. Removable media networked storage is provided through SD Card and USB ports accessible via Ethernet. Pair with the AMD3105 Smart Display for unparalleled control.

Specifications
Specifications

Model ACC9220

Width (in)

  • 5.75

Height (in)

  • 1.13

Depth (in)

  • 3.32

Weight (lb)

  • 1.2

Data I/O

  • CAN Bus 1 port, Ethernet 1 port, RS-232 1 in / 1 out

Removable Storage Media

  • SD Card, USB

Storage Temperature Range

  • -55˚C to +85°C

Operating Temperature Range

  • -40˚C to +55˚C (+71˚C for 30 minutes)

Input Voltage

  • 28 VDC

Qualifications

  • MIL-STD-3009, MIL-STD-461F, MIL-STD-704A/F, MIL-STD-810G



Products formerly Avalex
