AVM4158 Multi-Function Display

CLICK TO ENLARGE IMAGE

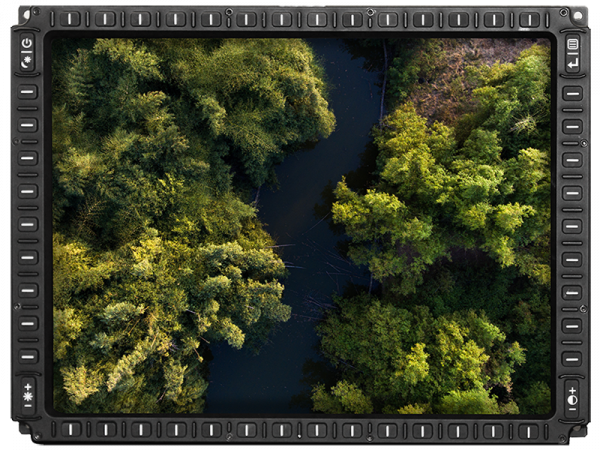

AVM4158 Multi-Function Display

When space or power are at a premium, look no further than the AVM4158 for your standard definition video needs. Offering three video inputs and one video output, as well as VGA, a full-color, sunlight-readable 4:3 aspect ratio LCD, and optional NVIS compatibility in a compact design, this display is ideal for the playback of crisp video, maps, or computer graphics in cramped quarters. The 6-button lighted bezel offers simple one-touch control of video sources and system menus.

View Datasheet

FeaturesSpecifications
Features

SCREEN MODES

Full screen mode displays only one input signal.

Picture-in-picture (PIP) mode displays two input signals simultaneously, one in a large format and one in a smaller window, whose position is configurable.

Picture-by-picture (PBP), or side-by-side mode, displays two input signals next to each other as equally sized images whose aspect ratios are maintained. Excess screen space appears as black bars.

Split screen (SS) mode displays two input signals simultaneously as equally sized images that are stretched/cropped to fit each window.

In each mode, aspect ratios can be maintained in letterbox format, or set to stretch and fit, or be cropped in the viewing space.























Products formerly Avalex
Specifications

Model AVM4158

Width (in)

  • 14

Height (in)

  • 10.6

Depth (in)

  • 1.93

Weight (lb)

  • 9

Display Area (in)

  • 15



Aspect Ratio

  • 4:3

Native Resolution

  • 1400 X 1050

I/O

  • ARINC818 (optional), DVI 2 in, HD-SDI 2 in / 2 out, HDMI 1 in / 1 out, SD 3 in / 2 out, VGA 1 in, Discretes, RS-232, RS-422

Storage Temperature Range

  • -55˚C to +85°C

Operating Temperature Range

  • -40°C to +71°C

Multi-Function Displays

Integrate Multiple Applications

With a full range of sizes, features and configurations, our displays support multiple applications and easily integrate into any aircraft or vehicle.

LEARN MORE

DISCOVER MORE
