Ideal for receiver built-in test (BIT), bit error rate (BER) testing and dithering circuits

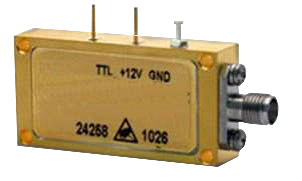

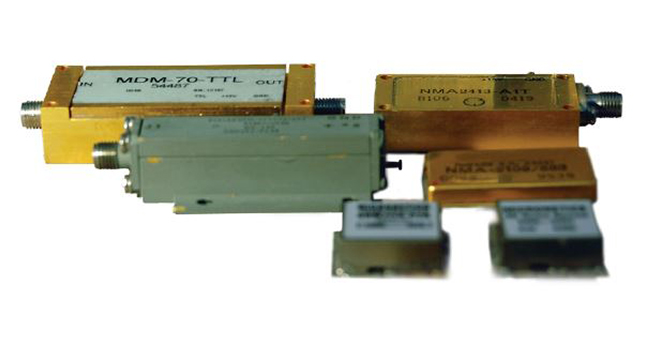

We have a long history of designing and manufacturing high-performance noise sources. These specialized products are ideal for applications such as receiver built-in test (BIT), bit error rate (BER) testing and dithering circuits. Additionally, these products are available in a range of form factors including coaxial and surface mount.
| Model Number | Freq Start (GHz) | Freq Stop (GHz) | Output (dB min ENR) | Spectral Density (dBm/Hz) | Peak Factor | Bias Voltage (V) | Datasheet |
|---|---|---|---|---|---|---|---|
| NST18-A | 0.01 | 18 | 25 | -149 | 5:01 | 28 | |
| NMA2218-A1T | 1 | 18 | 32 | -140 | 5:01 | 15 | |
| NS5102-A1W | 1 | 18 | 25 | -149 | 5:01 | 15 | |
| NSL-2-B | 0.001 | 1 | 29.0 - 31.0 | -144 | 5:01 | 15 | |
| NS5102-A2X | 1 | 18 | 25 | -149 | 5:01 | 15 |
| Model Number | Freq Start (MHz) | Freq Stop (MHz) | Output (dB min ENR) | Spectral Density (dBm/Hz) | Noise Power (N) (dBm) | Flatness (dB P-P) max | Bias Voltage (V) | Datasheet |
|---|---|---|---|---|---|---|---|---|
| NMA-2513-2T | 10 | 4000 | 78 | -96 | 0 | 4 | 5 and 12 | |
| NMA-5108-A1M | 0.0001 | 300 | 97.5 | -75 | 10 | 3 | 28 | |
| NMA-2514-1T | 6000 | 6000 | 74 | -100 | -3 | 4 | 5 and 12 | |
| NMA-5112-B2T | 10 | 2000 | 89 | -83 | 10 | 4 | 15 | |
| NMA-5300-B1M | 2000 | 18000 | 64.5 | -107 | -5 | 5 | 15 | |
| NMA-2510-1T | 10 | 1000 | 84 | -90 | 0 | 1 | 5 and 12 | |
| NMA-2512-1T | 10 | 2000 | 81 | -93 | 0 | 3 | 5 and 12 | |
| NMA-2514-2T | 100 | 6000 | 74 | -100 | -3 | 4 | 5 and 12 |
| Model Number | Freq Start (MHz) | Freq Stop (MHz) | Output (dB min ENR) | Spectral Density (dBm/Hz) | Flatness (dB P-P) max | Peak Factor | Supply Current (mA max) | Datasheet |
|---|---|---|---|---|---|---|---|---|
| NC504SM-12 | 0.2 | 3500 | 31 | -143 | 2 | 5:01 | 12 | |
| SMN3018-D1D | 20 | 6000 | 30 | -148 | 3 | 5:01 | 12 | |

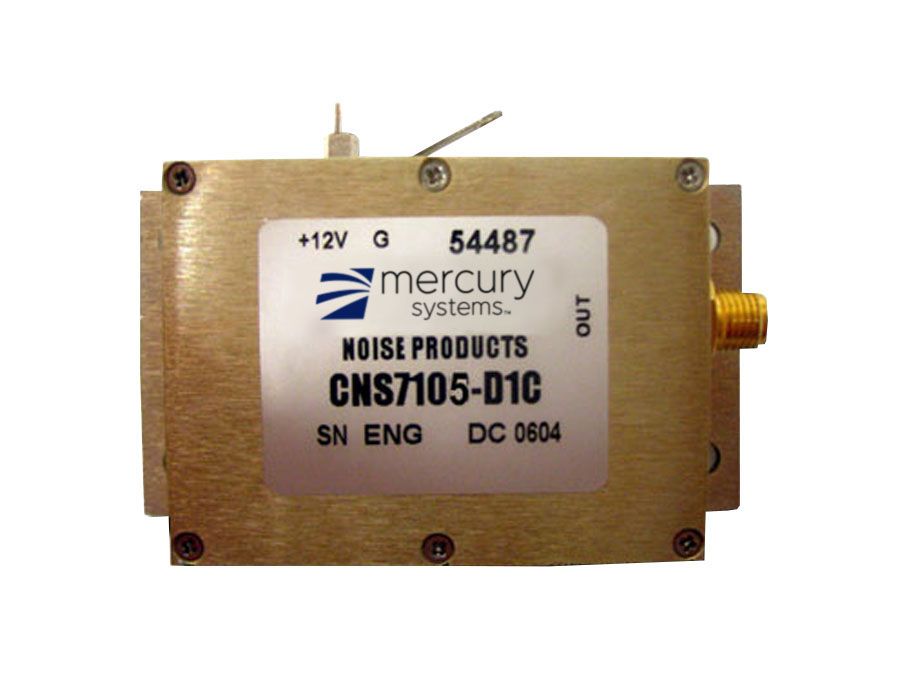

| SMN7105-D1C | 0.1 | 3 | 101 | -73 | -8 | 5:01 | 12 | |
| SMN7114-C2A | 100 | 3000 | 45 | -129 | 2.5 | 5:01 | 90 |
