Switches

High-reliability switches, proven in mission-critical systems

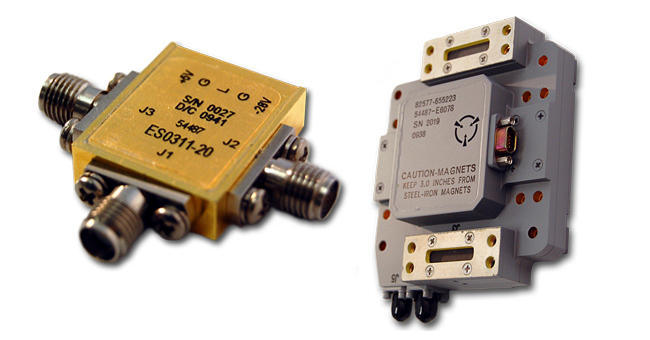

RF and Microwave Switches

Mercury’s PIN-diode switch family spans the frequency range of 500MHz to 40 GHz and includes high-performance with optional integrated, high-speed TTL or CMOS controlled drivers all in a compact package. These high-reliability switches will maintain their performance in harsh environments and are repeatedly proven in mission-critical systems on platforms ranging from land to sea to air.

For applications require custom electrical and mechanical specifications, Mercury’s team of experienced engineers is ready to tackle the most complex designs. To speed the development cycle of custom hardware, Mercury utilizes advanced, non-linear modeling techniques and automated manufacturing processes.

  • slide

EXPLORE RF SWITCHES

+ High Speed Switches
Product Family Freq GHz (band selective) Isolation Loss (dB max) VSWR (max) Isolation (max) Switching Speed Datasheet
SP4T Reflective 0.5 - 18 GHz 1.6 to 3.4 1.6 to 2.0 80 to 60 100

View
SP2T High Speed Reflective 18 - 40 GHz 2.5 to 3.0 2.0 to 2.5 30 to 35 100 to 500

View
SP3T Absorptive 0.5 - 18 GHz 1.6 to 3.4 1.6 to 2.0 80 to 65 100

View
SP2T Reflective 0.5 - 18 GHz 1.4 to 3.0 1.6 to 2.0 80 to 60 100

View
SP2T Absorptive 0.5 - 18 GHz 1.5 to 3.2 1.6 to 2.0 80 to 65 100

View
SP4T Absorptive 0.5 - 18 GHz 1.7 to 3.6 1.6 to 2.0 80 to 65 100

View
SP1T Absorptive 0.5 - 18 GHz 1.5 to 3.0 1.6 to 2.0 80 to 65 100

View
SP3T Reflective 0.5 - 18 GHz 1.5 to 3.2 1.6 to 2.0 80 to 60 100

View
+ Low Power Switches
Product Family Type Freq Start (GHz) Freq Stop (GHz) Isolation Loss (dB max) VSWR (max) Isolation (max) Switching Speed
8S3223 Series w/SMA removable connectors SP8T 2 18 3.5 2 60 100 ns
4S3060 Series SP4T 2 18 1.5 to 2.9 1.8 to 2.0 60 to 55 50 ns
2S30202 Series SPDT 2 18 1.5 to 2.4 1.7 to 2.0 60 to 55 50 ns
+ High Power SPDT Switches
Model Number Freq Start (GHz) Freq Stop (GHz) Peak Power (Watts) (max) Average Power (Watts) (max) Pulse Width (uSec) (max) Load VSWR (max) Switching Speed (ns) (max) Datasheet
ES0309-20 0.1 1 30 30 CW 2:01 250

View
ES0012 4 8 300 40 10 2.5:1 200

View
ES0314-5 2 18 5 5 CW 2:01 150

View
ES0313-50 0.5 4 50 50 CW 2:01 300

View
ES0314-20 2 8 20 20 CW 2:01 200

View
ES0313-5 0.5 4 5 5 CW 2:01 200

View
ES0013 8 18 300 40 10 2.5:1 300

View
ES0309-5 0.1 1 5 5 CW 2:01 100

View
ES0011 2 4 300 40 10 2:01 700

View
ES0313-20 0.5 4 20 20 CW 2:01 250

View
High-Speed SwitchesLow-Power SwitchesHigh-Power SPDT Switches
High-Speed Switches

High-Speed Switches

Mercury’s family of single-pole, high-speed switches offers high-performance up to 18GHz. With integrated TTL or CMOS drivers, these switches are ready for easy integration into your next-generation system. The switches are available in military-grade hermetic or non-hermetic housings.

CONTACT A SALES EXPERT

Low-Power Switches

Mercury’s low-power switches are optimized to provide low-loss and fast switching in a compact package. These high-reliability switches will maintain their performance in harsh environments and are repeatedly proven in mission-critical systems on platforms ranging from land to sea to air.

CONTACT A SALES EXPERT

High-Power SPDT Switches

Mercury’s high-power switches provide high-performance and can handle hundreds of watts of peak power. These connectorized modules are offered in a range of frequencies and power levels and also include integrated drivers for easy system integration.

CONTACT A SALES EXPERT
