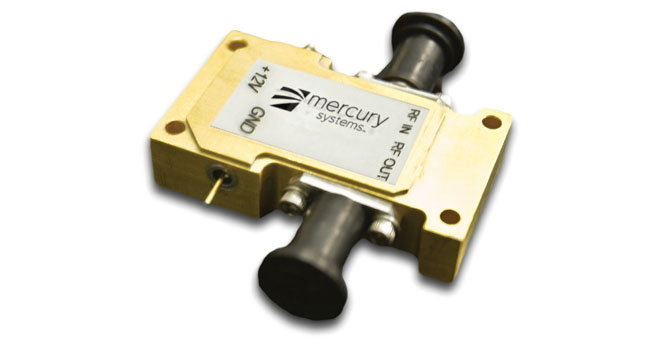

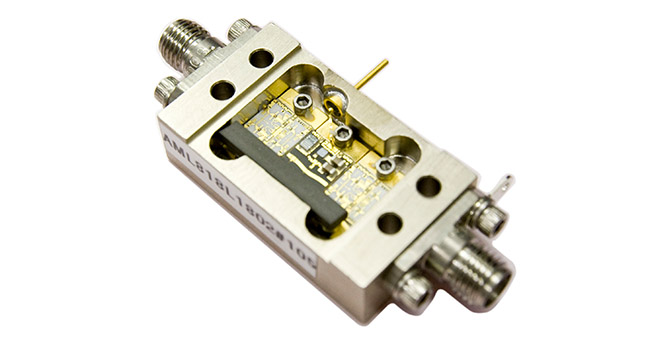

Medium-Power, Broadband Amplifiers
Proven, broadband microwave performance to 40 GHz
Wide-Band Microwave
Our family of distributed amplifiers utilize advanced broadband design techniques to achieve solid performance in gain, flatness, noise figure and output power over a wide frequency range. The experienced design team has the know-how and tools available to take any standard product and customize it for your specific application.
Explore Broadband Amplifiers
FILTERS
| Model Number | Freq Start (GHz) | Freq Stop (GHz) | Gain (dB) min | Flatness (±dB) max | NF (dB) max | P1dB (dBm) min | OIP3 (dBm) nom | VSWR (In/Out) nom | Voltage (V), Current (mA) | Datasheet |
|---|---|---|---|---|---|---|---|---|---|---|
| AML0126P3002 | 0.1 | 26.5 | 30 | 3 | 6.0* | 22 | 30 | 2.0:1 | 12V, 600mA | |
| DM-MPMB-36-101 | 2 | 18 | 37 | 1.5 | 3.5 | 22 | 30 | 2.0:1 | 11V, 500mA | |
| AML0118P3201 | 0.1 | 18 | 32 | 3 | 3.5* | 26* | 32* | 2.5:1 | 15V, 750mA | |
| DM-MPMB-20-101 | 0.5 | 18 | 20 | 1.75 | 6.5 | 23 | 31 | 2.0:1 | 11V, 450mA | |
| DM-MPMB-30-102 | 0.5 | 2 | 31 | 1.5 | 3.6 | 26 | 36 | 2.0:1 | 11V, 400mA | |
| DM-MPMB-18-101 | 2 | 18 | 18 | 1.25 | 5.6 | 24 | 32 | 2.0:1 | 11V, 500mA | |
| DM-MPMB-22-102 | 0.5 | 2 | 22 | 1 | 3.6 | 26 | 36 | 2.1:1 | 11V, 300mA | |
| DM-MPSC-18-102 | 2 | 6.5 | 16 | 1 | 5.6 | 24 | 34 | 1.8:1 | 11V, 475mA | |
| AML118P2703 | 1 | 18 | 27 | 2 | 4 | 27 | 34 | 2.0:1 | 15V, 525mA | |
| AML618P4202 | 6 | 18 | 42 | 2.5 | 3 | 35 | 42 | 1.8:1 | 12V, 2200mA | |
| DM-MPMB-30-101 | 6 | 18 | 30 | 1.25 | 5 | 19 | 22 | 2.0:1 | 11V, 350mA | |
| DM-MPMB-25-102 | 6 | 18 | 25 | 2 | 3 | 20 | 30 | 2.0:1 | 11V, 450mA | |

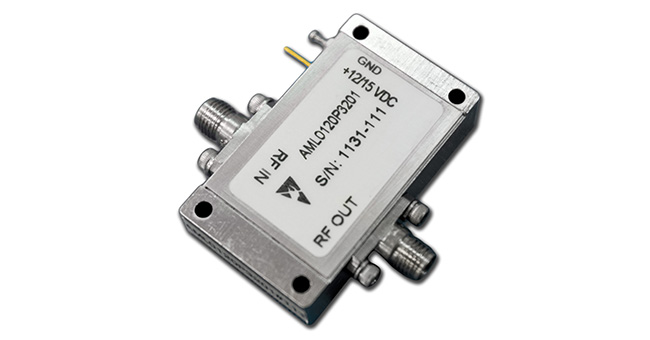

| AML120P3201 | 1 | 20 | 32 | 3.5 | 5 | 27 | 32 | 2.0:1 | 15V, 1500mA | |
| AML1840P2802 | 18 | 40 | 35 | 3 | 6.5 | 22 | 28 | 2.0:1 | 12V, 800mA |
