Switch Matrices
Broadband and rugged to bring custom RF performance to harsh environments

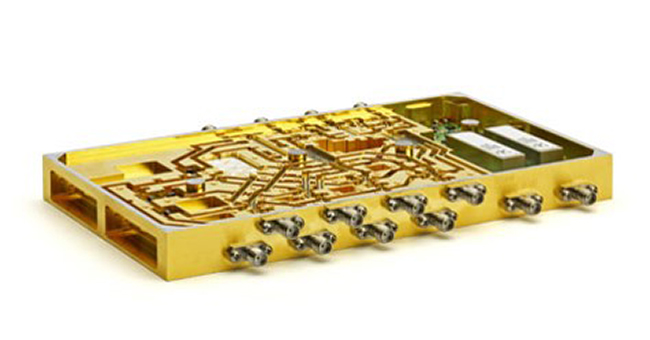

Mercury System’s family of rugged, custom-designed switch matrices are available in rigid PCB construction, module-based packages, or rack-mount solutions. Each switch matrix is a highly integrated, SWaP-optimized assembly consisting of an assortment of switches, filters, amplifiers, attenuators, limiters, and drivers. The result is high speed channel selection, high isolation, high linearity, and low insertion loss.
Capability highlights:
- From 10MHz to 40GHz
- Position indicating, BIT circuitry
- Input/output power detection, switched attenuators
- On-board PC power conditioning
Integrated Manufacturing
Reduce Risk with Automated RF Manufacturing
Utilizing the latest in automated RF manufacturing, we make production of cutting-edge technology scalable and repeatable, supporting your ramp to full-rate production while reducing risk. With 250,000 square feet of flexible manufacturing capability, we ensure delivery of high-volume high-quality product.
