AM1018A 20 MHz to 6 GHz Gain Block MMIC Amplifier

20 MHz to 6 GHz Gain Block

AM1018A is a high dynamic range cascadable gain block covering the 20 MHz to 6 GHz frequency range. It operates from a +3.3 VDC supply and exhibits a flat frequency response and high third order intercept performance while also providing excellent gain stability over the operating temperature range. With internal 50Ω matching and packaged in a 3mm QFN, the AM1018A represents a compact total PCB footprint.

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. Evaluation board includes AM1018A.Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. Evaluation board includes AM1018A.

ASK A QUESTION

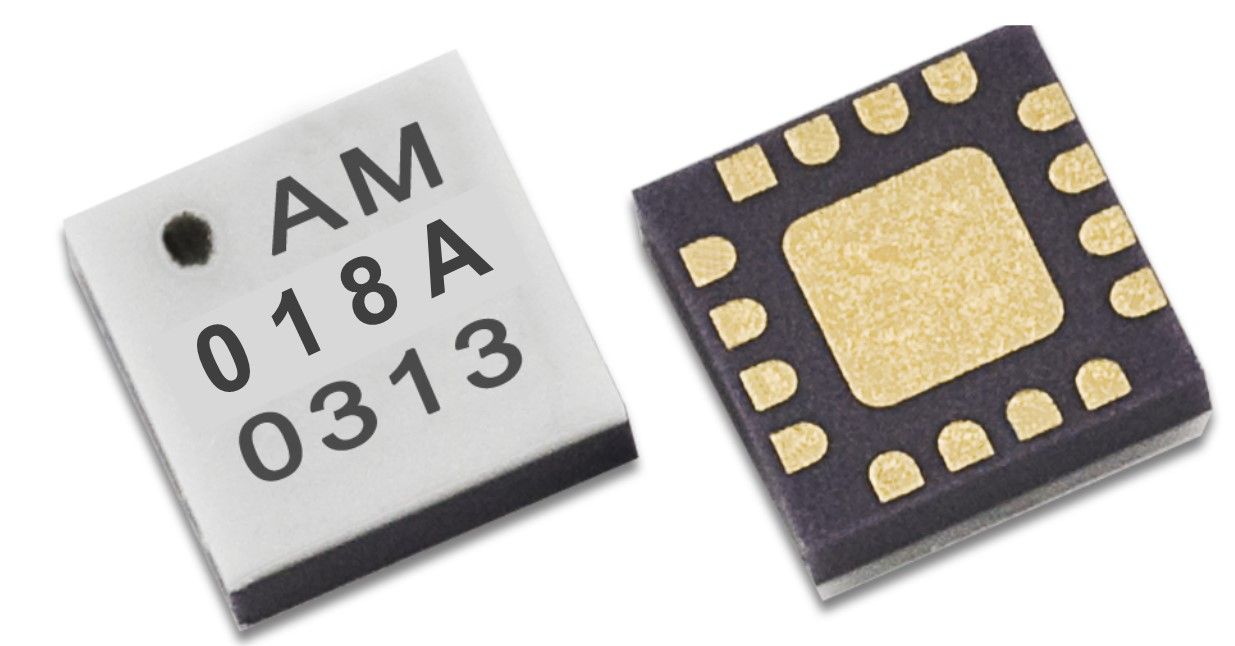

AM1018A-MMIC-Amplifier

.02 - 6
Frequency (GhZ)
13
Gain (dB)
3
NF (dB)
35
OIP3 (dBm)
Features
  • 13 dB gain
  • 3 dB Noise Figure
  • +35 dBm OIP3
  • +18 dBm P1dB
  • +3.3V Supply
Specifications
  • Function: Low Noise Gain Block
  • Freq. (GHz): 0.02 - 6
  • Gain (dB): 13
  • NF (dB): 3
  • OIP3 (dBm): 35
  • Surface Mount: 3mm
  • Supply (+V): 3.3
  • P1dB (dBm): 18
  • Supply (mA): 85
  • Bare Die: No
  • Module: Yes
