20 MHz to 3 GHz High Linearity Amplifier

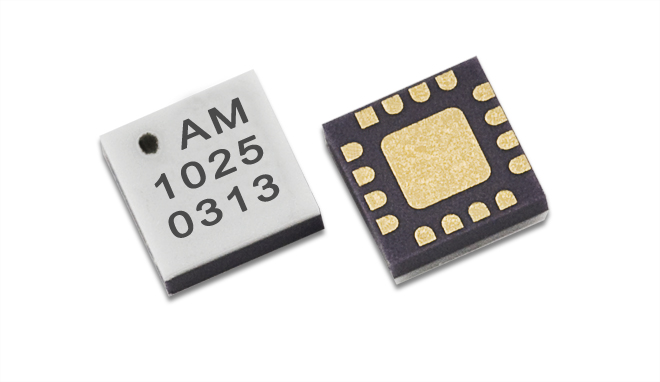

AM1025B is a high dynamic range cascadable gain block covering the 20 MHz to 3.0 GHz frequency range. The device exhibits high P1dB, high second and third order intercept performance, and low noise figure while also providing excellent gain stability over the operating temperature range. With internal 50Ω matching and packaged in a 3mm QFN the AM1025B represents a compact total PCB footprint.
Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. Evaluation board includes AM1025B.
Module includes field replaceable SMA input and output connectors. Module also includes two pins for voltage input through a feed-through capacitor and a corresponding ground connection. Module includes four mounting holes sized 4-40 that are threaded from the bottom side of the module.
The AM1025B is the replacement for the AM1025.The AM1025B is the replacement for the AM1025.
.02 - 3
Frequency (GhZ)
13.5
Gain (dB)
3.8
NF (dB)
40
OIP3 (dBm)
