DC to 8 GHz Bypassable Gain Block
The AM1065 is a high dynamic range bypassable DC-coupled amplifier covering up to 8 GHz. The device exhibits a flat gain response and low bypass insertion loss. Packaged in a 4mm QFN with internal 50Ω matching and requiring a single positive control voltage, the AM1065 represents a dramatic size reduction over a discrete implementation of a bypassable amplifier.
In this family there is the AM1081 that covers DC to 8 GHz with higher P1dB and IP3, the AM1067 that covers 5 GHz to 20 GHz, and the AM1075 that covers 5 GHz to 26.5 GHz. In addition to these the AM1073 offers bi-directional performance while still being bypassable covering DC to 8 GHz and the AM1077 offers a bypassable amplifier with an isolation state covering 5 GHz to 20 GHz.

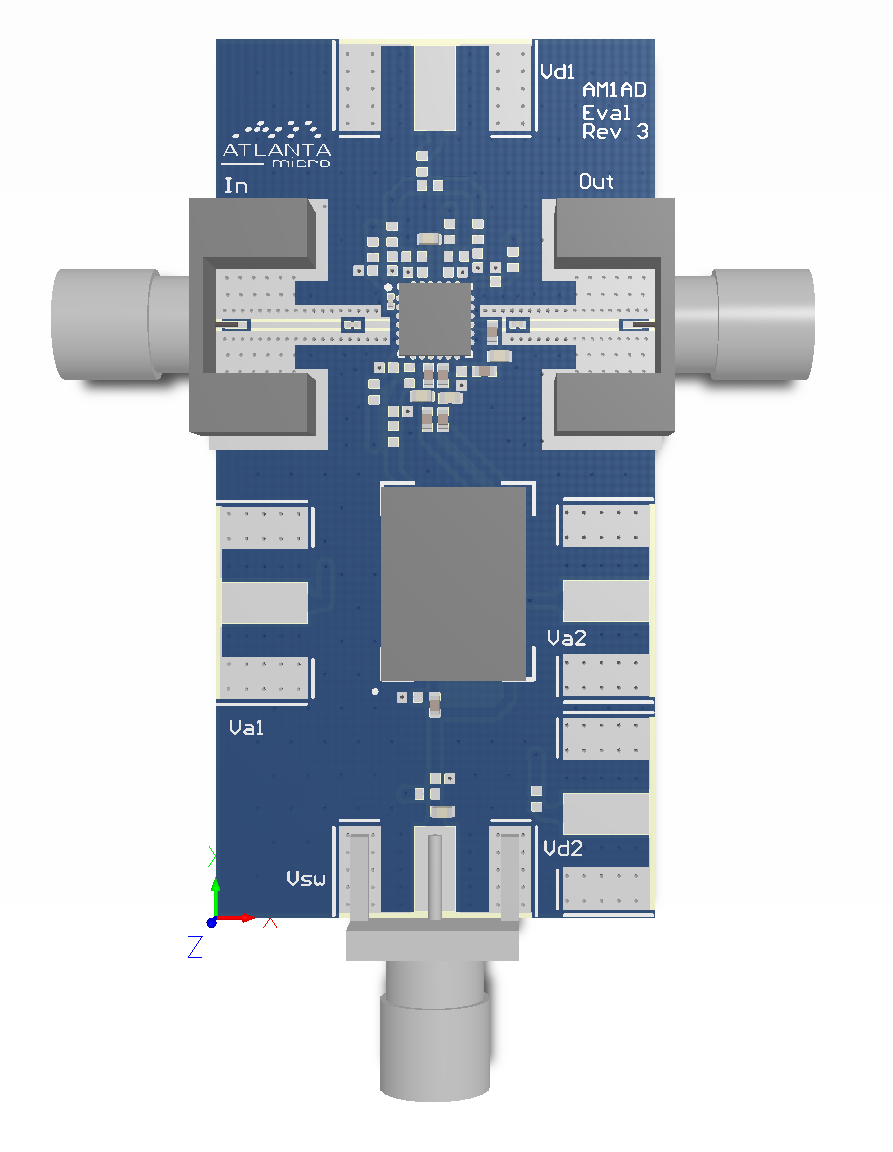

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. AM1065 evaluation board also includes DIP switch for control of bypass function. This switch is included with the evaluation board unless otherwise requested. Evaluation board includes AM1065. Module includes field replaceable SMA input and output connectors. Module also includes three pins for voltage input through a feed-through capacitor and a corresponding ground connection as well as a pin for toggling the bypass control high or low. Module includes four mounting holes sized 4-40 that are threaded from the bottom side of the module.
DC - 8
Frequency (GhZ)
20
Gain (dB)
2.5
NF (dB)
32
OIP3 (dBm)
