DC to 18 GHz Broadband Gain Block

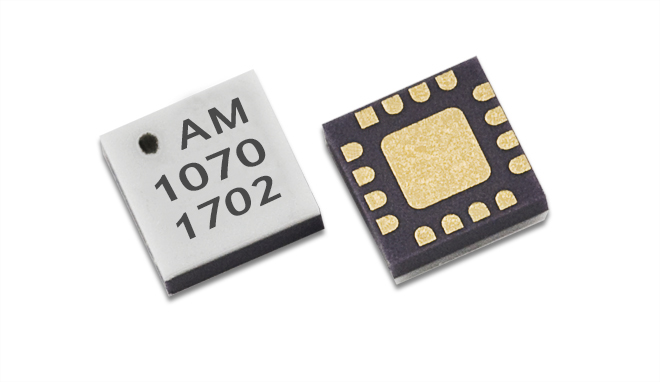

The AM1070-1 is a DC-coupled broadband gain block covering up to 18 GHz. The device exhibits high third order intercept performance, excellent gain stability over the operating temperature range, and a gain flatness within +/- 1 dB of nominal gain useful in many broadband applications. With internal 50Ω matching and packaged in a 3mm QFN, the AM1070-1 represents a compact total PCB footprint.
Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. Evaluation board includes AM1070 and AM1070-2.
The AM1070 is also available in a 1.3mm x 2mm DFN package as the AM1070-2.
DC - 18
Frequency (GhZ)
12
Gain (dB)
3
NF (dB)
27
OIP3 (dBm)
Products formerly Atlanta Microwave
Purpose-Built MMIC Components
Enable Portable Platforms
Leverage the latest in solid-state GaAs technology with off-the-shelf, broadband MMIC devices that operate at high frequency to enable portable and low-power platforms.
