20 MHz to 6 GHz Low Noise Amplifier

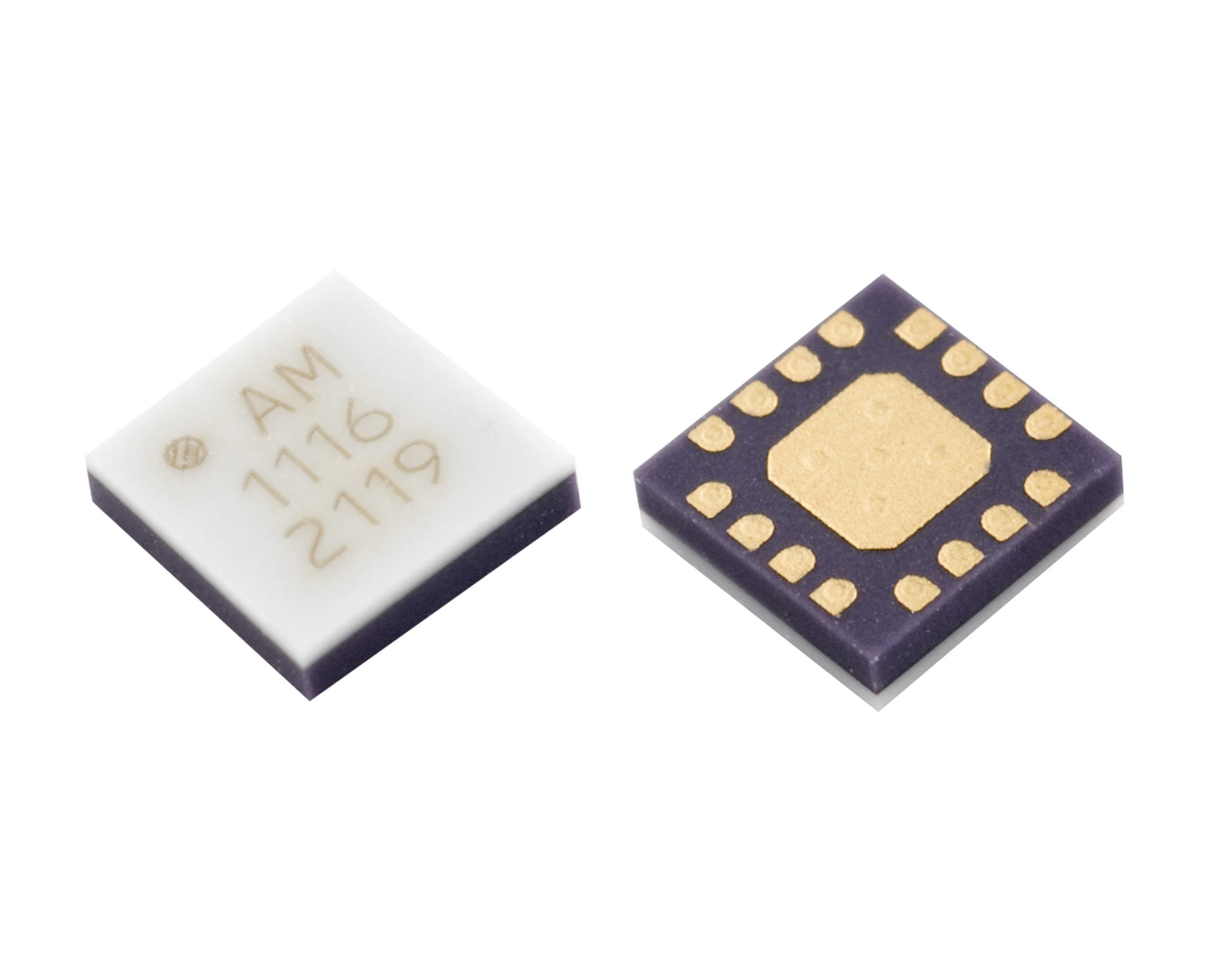

AM1116 is a high dynamic range gain block covering the 20 MHz to 6 GHz frequency range. The device exhibits flat gain, low noise figure and high third order intercept performance while also providing excellent gain stability over the operating temperature range. With internal 50 ohm matching and packaged in a 3mm QFN, the AM1116-1 represents a compact total PCB footprint.
Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. Evaluation board includes AM1116-1 and AM1116-2.
.02 - 6
Frequency (GhZ)
15
Gain (dB)
2
NF (dB)
31
OIP3 (dBm)
Products formerly Atlanta Microwave
Purpose-Built MMIC Components
Enable Portable Platforms
Leverage the latest in solid-state GaAs technology with off-the-shelf, broadband MMIC devices that operate at high frequency to enable portable and low-power platforms.
