AM1127 20 MHz to 6 GHz Driver MMIC Amplifier

20 MHz to 6 GHz High Linearity Gain Block

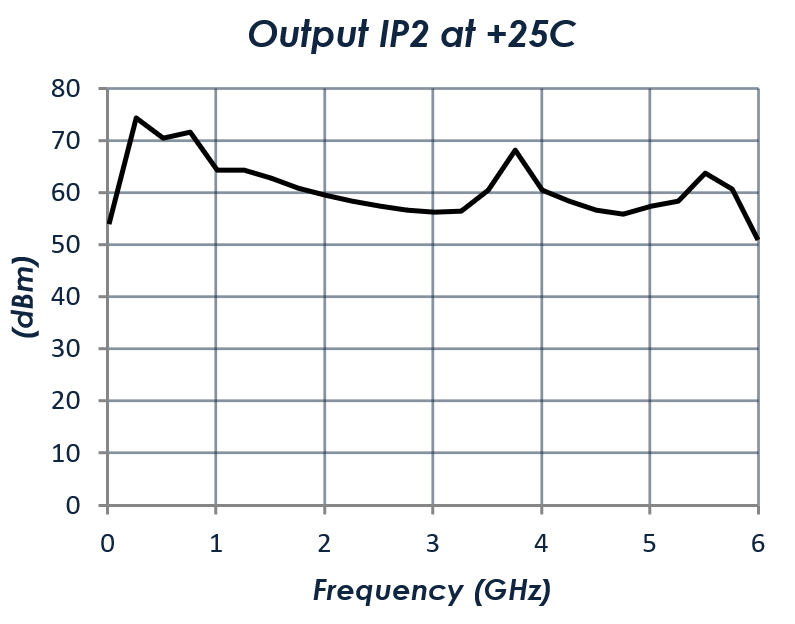

The AM1127 is a high dynamic range cascadable amplifier operating over the 20 MHz to 6.0 GHz frequency range. The device exhibits exceptional second and third order intercept performance as well as high P1dB and low noise figure. With only the need for one positive supply rail and packaged in a 4mm QFN, the AM1127 represents a compact total PCB footprint. Its high gain and linearity make the AM1127 an excellent choice for a receiver front end or transmitter backend.

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. Evaluation board includes AM1127.

Module includes field replaceable SMA input and output connectors. Module also includes two pins for voltage input through a feed-through capacitor and a corresponding ground connection. Module includes four mounting holes sized 4-40 that are threaded from the bottom side of the module.

ASK A QUESTION

AM1127-MMIC-Amplifier

.02 - 6
Frequency (GhZ)
19
Gain (dB)
3.5
NF (dB)
39
OIP3 (dBm)
Features
  • 19 dB gain
  • 3.5 dB Noise Figure
  • 39 dBm OIP3
  • 16/23 dBm P1dB
  • 140/300 Supply (mA)
Specifications
  • Function: Driver Amplifier
  • Freq. (GHz): 0.02 - 6
  • Gain (dB): 19
  • NF (dB): 3.5
  • OIP3 (dBm): 39
  • Surface Mount: 4mm
  • Supply (+V): 3.0/6.0
  • P1dB (dBm): 16/23
  • Supply (mA): 140/300
  • Bare Die: No
  • Module: Yes



Products formerly Atlanta Microwave

Purpose-Built MMIC Components

Enable Portable Platforms

Leverage the latest in solid-state GaAs technology with off-the-shelf, broadband MMIC devices that operate at high frequency to enable portable and low-power platforms.
