Broadband Gain Equalizing Amplifier

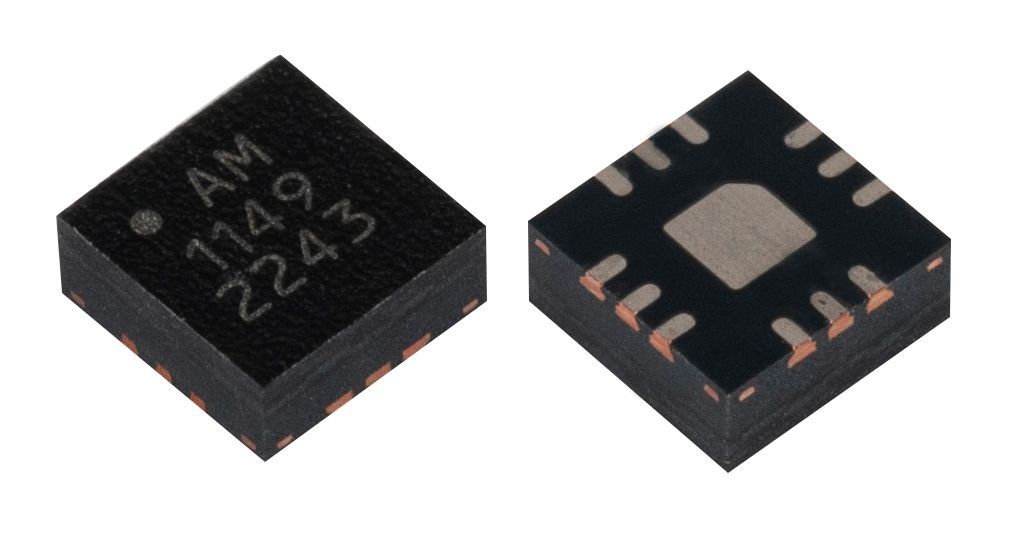

AM1149 is a wideband, cascadable amplifier servicing the 6 to 26.5 GHz frequency range. The device exhibits low gain at the lower frequencies ascending to moderate gain at the higher frequencies. The increasing gain across frequency makes the AM1149 an ideal solution to equalize gain/insertion loss across an RF system. Combining both gain and equalization while packaged in a 3mm QFN with internal 50Ω matching, the AM1149 is a small form-factor solution that can enable low SWaP applications.
he AM1149 is one in a family of gain equalizing amplifiers offered, covering the 6 GHz to 26 GHz frequency range with variable slope and gain parameters. This family of parts is pin compatible with each other allowing swapping of the amplifiers to optimize system performance when needing more or less gain versus frequency. This family of gain equalizing amplifiers includes the AM1147 and AM1148.
Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. Evaluation board includes AM1149.
6 - 26.5
Frequency (GhZ)
14.5
Gain (dB)
2.8
NF (dB)
25
OIP3 (dBm)
