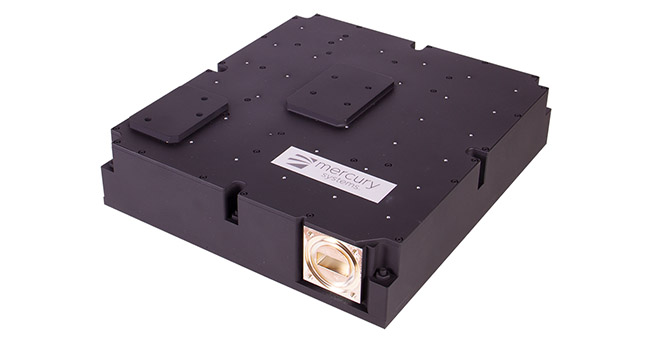

Space-Qualified, Solid-State Power Amplifiers
Mercury Systems' Space-Qualified RF & microwave amplifiers product line leverages Mercury's core capabilities in SWaP-optimized components, GaN technology, and space level quality. The standard products are augmented with the ability for rapid customization to support any requirement. With a successful track record delivering mission critical products over decades, Mercury Systems has the experience to support your application.
| Model Number | Freq Start (GHz) | Freq Stop (GHz) | Gain (dB) | Output Power P3dB (dBm) typ | Datasheet |
|---|---|---|---|---|---|
| DM-HPC-30-103-S | 3.7 | 4.2 | 40 | 45 dBm (32W) | |
| DM-HPS-50-102-S | 2.2 | 2.3 | 50 | 47 dBm (50W) | |
| DM-HPS-8-102-S | 2.2 | 2.3 | 44 | 39 dBm (8W) | |
| DM-HPX-10-103-S | 7.25 | 7.75 | 40 | 40 dBm (10W) | |
| DM-HPX-15-102-S | 7.9 | 8.4 | 45 | 42 dBm (15W) | |
| DM-HPX-20-103-S | 7.25 | 7.75 | 45 | 43 dBm (20W) | |
| DM-HPX-4-102-S | 7.9 | 8.4 | 40 | 36 dBm (4W) | |
| DM-HPX-5-103-S | 7.25 | 7.75 | 40 | 37 dBm (5W) | |
| DM-HPX-8-102-S | 7.9 | 8.4 | 40 | 39 dBm (8W) |
