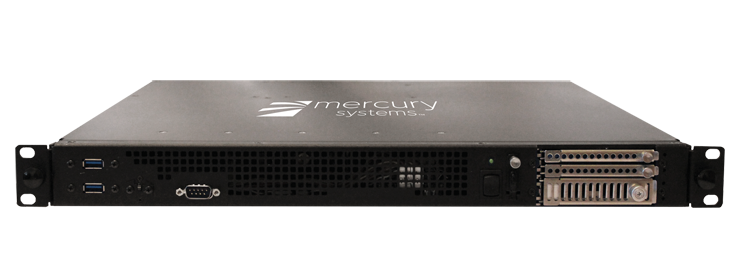

RES-XR6 1U, 4 Drive 18 Inch Rugged Standard Density Server

Dual Intel® Xeon® Scalable processors, 2TB memory and 4 disk drives

  • slide

18 Inch Deep, 4 Drive, Rear I/O Server

Designed to be a rugged tactical workstation, the RES-XR6 1U packages dual Intel® Xeon® Scalable processors with 28 cores, 2TB DDR4 ECC memory, enhanced reliability features and 60TB of storage in a 17lb, 18" deep chassis. Manufactured in AS5553 compliant, AS9100D facilities, the quiet system meets multiple military environmental specifications including airborne and structural noise.

This product is not recommended for new designs. Visit our RES X07 or RES X08 servers for new-design applications.

ASK A QUESTION

Patented Technology Options

In addition to memory stabilization, this server features numerous patented technology options including:

- System control module for remote management
- Aeroloc Baffle system for low airflow operations
- Remote battery bypass that enables BIOS battery replacement without system shutdown

Stealth and Flexibility



A robust array of high speed I/O, storage options, expansion choices and security features deliver maximum flexibility for current and future system requirements.

FeaturesSpecificationsEnhancement OptionsEnvironmental & Mechanical
Features
  • Dual Intel® Xeon® Scalable Bronze, Silver, Gold or Platinum CPUs with up to 28 cores per processor
  • Up to 60TB of storage
  • Up to 4 disk drives
  • 3 PCIe 3.0 cards
  • MIL-STD: 810G, 901D, 167-1, 1474D, 740-2, 461F
  • Patented memory stabilization

REQUEST A QUOTE

Specifications
  • Dual Intel® Xeon® Scalable Bronze, Silver, Gold or Platinum CPUs with up to 28 cores per processor
  • Up to 2TB 2666MHz memory

Patented Technologies

  • Memory stabilization
  • Aeroloc baffle system
  • System control module for remote management

Management and Operating System

  • Windows®, Linux®, VMware® and other hypervisors
  • IPMI v2.0, Redfish option available
  • TPM 1.2 or 2.0 Support

Expansion and Modular Maintainability

  • Up to 3 PCIe 3.0x16 cards (full height, half length) in removable card cage
  • 1 internal M.2. PCIe drive
  • 5 removable fans

Power Supply Options

  • Single 100/240V VAC (47/63Hz, 400Hz)
  • Single 10-36 VDC, 32 Amps
  • Single 36-72 VDC, 18 Amps
  • MIL-STD 461, 704F, 1399-300B

DOWNLOAD DATASHEET

Input/Output Versatility

Front Access

  • 4 Removable, Hot Pluggable, 2.5" SATA/SAS3 drive, U.2 NVME option available
  • 1 Power/Reset Switch
  • 1 CFM Switch (optional)
  • 1 Power On LED
  • 2 USB 3.O (optional)
  • 1 Quick Change CMOS Battery

Rear Access

  • 2 1GBaseT or 10GBaseT Ethernet Ports (RJ45)
  • 2 USB 3.0
  • 1 RS-232
  • 1 IPMI 2.0 (RJ45)
  • 1 VGA Graphic Port

Additional Options

  • Front Door Filter
  • Slide Rails
  • CAC Card Reader
  • Read/Write Switches to prevent accidental rewrite
  • Intel® IOT Systems Alliance Solutions
    • Intel® Advanced Management Technology (AMT)
    • Intel® Trusted Execution Technology (TXT)
    • Intel® Advanced Vector Extensions (AVX)


Enhancement Options

Current available enhancement options include:

  • Patented technologies (mentioned above)
  • Removable PCIe card cage for simplified sparing
  • Read/Write switches to prevent accidental rewrite
  • CAC readers
  • Slide rails
  • Front door filter

Additional features, testing and certifications are available upon customer request.

Environmental & Mechanical

MIL-STD / Industrial Specifications

  • MIL-STD 810G
  • Shock: MIL-STD 901D Grade A
  • EMI/RFI: MIL-STD 461F, CE102 standard
  • Vibration: MIL-STD 167-1, MIL-STD 810G
  • Airborne Noise: MIL-STD 1474D
  • Structure Borne Noise: MIL-STD 740-2

Environmental*

Operating

  • Temperature: 0°C to 50°C
  • Extended Temperature: -15°C to 65°C
  • Humidity: 5% to 95% (non-condensing)
  • Shock: 3 axis, 35g, 25ms
  • Vibration: 4.76Grms, 4Hz to 2000 Hz (SSD)
  • Altitude: 10,000 ASL

Non-Operating

  • Temperature: -40°C to 80°C
  • Humidity: 5% to 95% (non-condensing)
  • Altitude: 40,000 ASL

Mechanical

  • Height: 1U or 1.75 inches (44.45mm)
  • Width: 17 inches (433.3mm)
  • Depth: 18 inches (457.2mm)
  • Weight (Typical)*:
    • Steel Chassis: 20lbs (9.1kg)
    • Aluminum: 17lbs (7.7kg)
  • Cooling: forced air (rear vent) front to rear
  • 19” rackmountable

* Mercury Systems designs all products to meet or exceed listed data sheet specifications. Some specifications including I/O profiles, weight, and thermal profiles are configuration dependent. Contact Mercury for information specific to your desired configuration requirements.
