RES-XR6 3U, 3 Drive 17 Inch Rugged Standard Density Server
Dual Intel® Xeon® Scalable processors, 2TB memory and 3 disk drives
CLICK TO ENLARGE IMAGE

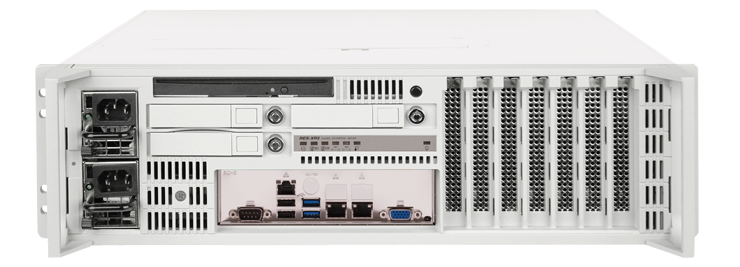

17 Inch Deep, 3 Drive, Front I/O Server
Featuring dual Intel® Xeon® Scalable processors with 2TB DDR4 ECC memory, enhanced reliability and 90TB of storage in three disk drives, the RES-XR6 3U accelerates compute intensive workloads for applications such as signal intelligence, cryptography, AI, surveillance, sensor fusion, analytics, communications and audio/video processing.
This product is not recommended for new designs. Visit our RES X07 or RES X08 servers for new-design applications.
Designed for the Field
The system incorporates advanced thermal and mechanical design features to provide superior resilience to shock, vibration, dust, sand and temperature extremes. Dual redundant, hot swappable AC or DC power supplies provide high availability while a specially designed dust cover, new memory retention + vibration dampeners and optional tamper-evidence features offer users extra security for operations on the move.
Space Optimized Performance
Optimized for size, weight, and power (SWaP), the system weighs only 29lbs and is 17" deep. A robust array of high speed I/O, storage options, enhanced security features and expansion choices allow users maximum flexibility for current and future system requirements.
Specifications
- Dual Intel® Xeon® Scalable Bronze, Silver, Gold or Platinum CPUs with up to 28 cores per processor
- Up to 2TB memory with 16 DIMM slots
Management and Operating System
- Windows®, Linux®, VMware® and other hypervisors
- IPMI v2.0, Redfish option available
- TPM 1.2 or 2.0 Support
Expansion and Modular Maintainability
- Up to 6 full-height PCIe 3.0 cards
- 4 PCIe 3.0 x16 (2 10" length, 2 half length)
- 2 PCIe 3.0 x8 10" length
- 3 Removable Fans
Input/Output Versatility
Front Access
- 3 Removable, Hot Pluggable, 2.5” SATA/SAS3 drives, U.2 NVME option available
- 2 1GBaseT or 10GBaseT Ethernet Ports (RJ45)
- 2 USB 3.0 and USB 2.0
- 1 IPMI 2.0
- 1 VGA Graphic Port
- 1 Serial Port (DB9)
- 1 CD-RW/DVD-RW Drive, Blu-Ray Option
- 1 Power Switch
Power Supply Options
- Single or Redundant 100/240V VAC (50/60Hz, 400Hz)
- Single or Redundant 10-36 VDC, 32 Amps
- Single or Redundant 36-72 VDC, 18 Amps
- MIL-STD 461
Additional Options
- Shock Pins
- Slide Rails
- Tamper-Evidence Features
