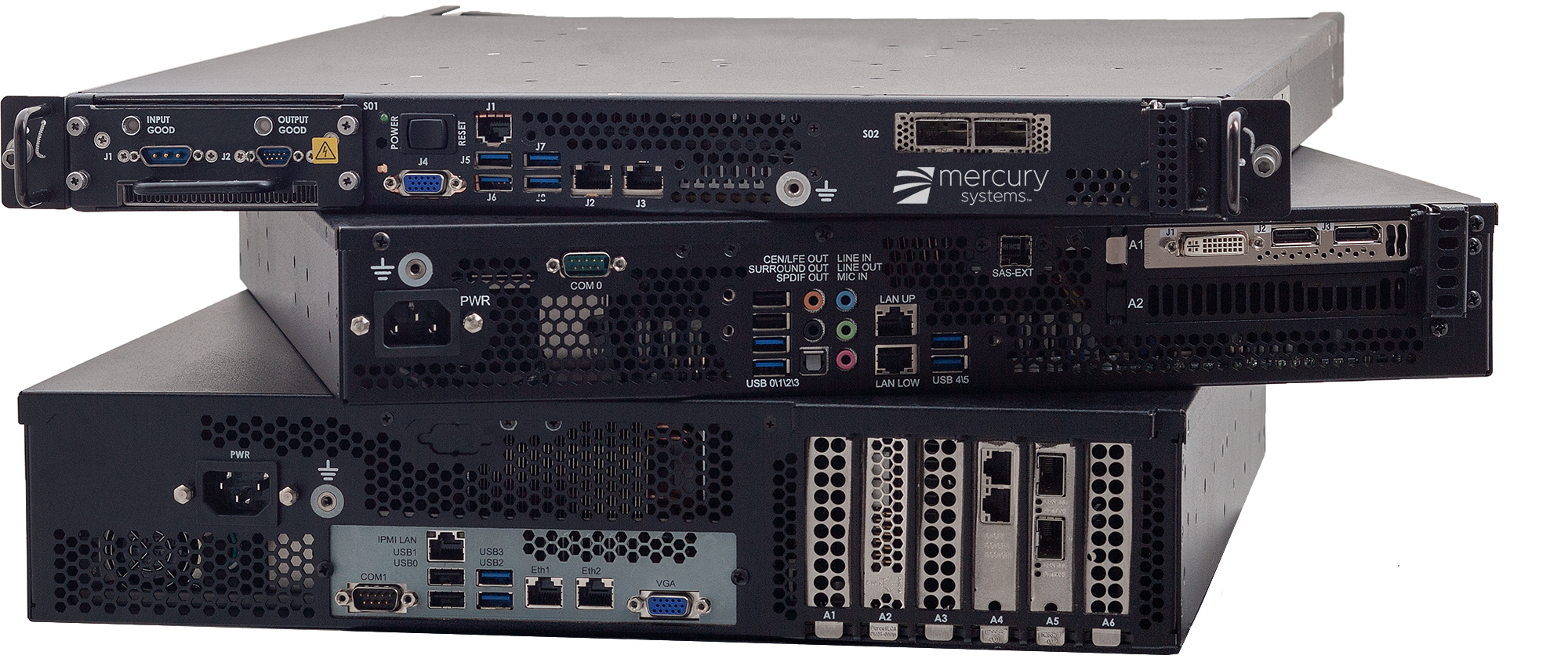

RES-XR6 3U, 4 Drive 13 Inch Rugged Standard Density Server

Dual Intel® Xeon® Scalable processors, 2TB memory and 4 disk drives

  • slide

13 Inch Deep, 4 Drive, Front I/O Server

The RES-XR6 2U packages dual Intel® Xeon® Scalable processors with 28 cores and 2TB DDR4 ECC memory in a 30lb, 13" deep chassis. Manufactured in AS5553 compliant, AS9100D facilities, the quiet system meets multiple military environment specifications including airborne and structural noise.

This product is not recommended for new designs. Visit our RES X07 or RES X08 servers for new-design applications.

ASK A QUESTION

Patented Technology Options



In addition to memory stabilization, this server features numerous patented technology options including:

- System control module for remote management
- Aeroloc Baffle system for low airflow operations
- Remote battery bypass that enables BIOS battery replacement without system shutdown



Stealth and Flexibility



A robust array of high speed I/O, storage options, expansion choices and security features deliver maximum flexibility for current and future system requirements.

FeaturesSpecificationsEnhancement OptionsEnvironmental & Mechanical
Features
  • Dual Intel® Xeon® Scalable Bronze, Silver, Gold or Platinum CPUs with up to 28 cores per processor
  • Up to 60TB of storage in 4 disk drives
  • Up to 6 PCIe 3.0 cards (2 PCIe 3.0 x16, 3 PCIe 3.0 x8 and 1 PCIe 3.0 x4)
  • MIL-STD: 810G, 901D, 167-1, 1474D, 740-2, 461F
  • Patented memory stabilization

REQUEST A QUOTE

Specifications
  • Dual Intel® Xeon® Scalable Bronze, Silver, Gold or Platinum CPUs with up to 28 cores per processor
  • Up to 2TB 2933MHz memory

Patented Technologies

  • Memory stabilization
  • Aeroloc baffle system
  • System control module for remote management

Management and Operating System

  • Windows®, Linux®, VMware® and other hypervisors
  • IPMI v2.0, Redfish option available
  • TPM 1.2 or 2.0 Support

Expansion and Modular Maintainability

  • Up to 6 PCIe 3.0 cards
    • 2 PCIe 3.0 x16, 3 PCIe 3.0 x8 and 1 PCIe 3.0 x4
  • 1 Internal M.2 PCIe drive

Input/Output Versatility

Front Access

  • Up to 4 Removable, Hot Pluggable, 2.5" SATA/SAS3 drives, U.2 NVME option available
    can configure with up to (2) 15mm or (4) 7mm (SATA) high drives
  • 1 Power/Reset Switch
  • 1 Power On LED
  • 1 Quick Change CMOS Battery
  • 1 Blu-Ray Player or DVD/CD ROM drive (optional)
  • 2 1GBaseT or 10GBaseT Ethernet Ports (RJ45)
  • 4 USB 3.0
  • 1 RS-232
  • 1 IPMI 2.0 (RJ45)
  • 1 VGA Graphic Port

Rear Access

  • 1 CFM Switch (optional)
  • 2 USB 3.0 (optional)
  • 1 RS-232 (optional)

DOWNLOAD DATASHEET

Power Supply Options

  • Single 100/240V VAC (47/63Hz, 400Hz)
  • Single 10-36 VDC, 32 Amps
  • Single 36-72 VDC, 18 Amps
  • MIL-STD 461, 704F, 1399-300B

Additional Options

  • Front Door Filter
  • Slide Rails
  • CAC Card Reader
  • Read/Write Switches to prevent accidental rewrite


Enhancement Options

Current available enhancement options include:

  • Patented technologies (mentioned above)
  • Removable PCIe card cage for simplified sparing
  • Read/Write switches to prevent accidental rewrite
  • CAC readers
  • Slide rails
  • Front door filter
  • 10 GbE x710 series Intel® ethernet controller

Additional features, testing and certifications are available upon customer request.

Environmental & Mechanical

MIL-STD / Industrial Specifications

  • MIL-STD 810G
  • Shock: MIL-STD 901D Grade A, EC 60068-2-27
  • EMI/RFI: MIL-STD 461F, CE102 standard
  • Vibration: MIL-STD 167-1, MIL-STD 810G, IEC 60068-2-64
  • Airborne Noise: MIL-STD 1474D
  • Structure Borne Noise: MIL-STD 740-2
  • Temperature: IEC 60068-2-2 test Bb, 60068-2-1 test Ab

Environmental*

Operating

  • Temperature: 0°C to 50°C
  • Extended Temperature: -15°C to 65°C
  • Humidity: 5% to 95% (non-condensing)
  • Shock: 3 axis, 35g, 25ms
  • Vibration: 4.76Grms, 4Hz to 2000 Hz (SSD)
  • Altitude: 10,000 ASL

Non-Operating

  • Temperature: -40°C to 80°C
  • Humidity: 5% to 95% (non-condensing)
  • Altitude: 40,000 ASL
  • Conformal Coating: IPC-CC 830 (optional)

Mechanical

  • Height: 3U or 5.25 inches (133.35mm)
  • Width: 17 inches (431.8mm)
  • Depth: 13 inches (330.2mm)
  • Weight (Typical)*:
    • Steel Chassis: 30lbs (13.6kg)
  • Cooling: Internal fan-cooled (rear vent) front to rear
  • 19” rackmountable

* Mercury Systems designs all products to meet or exceed listed data sheet specifications. Some specifications including I/O profiles, weight, and thermal profiles are configuration dependent. Contact Mercury for information specific to your desired configuration requirements.
