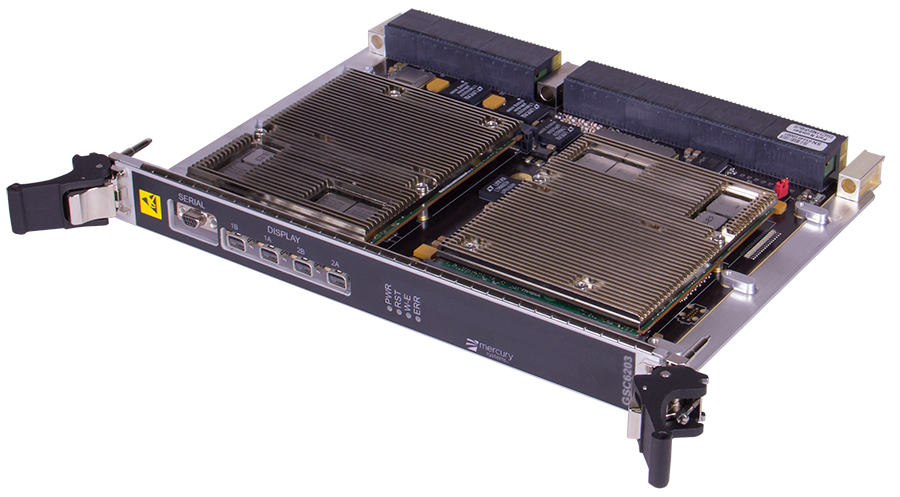

GSC6203 6U OpenVPX GPGPU Coprocessing Board
Dual NVIDIA Pascal P5200E MXM, 5120-cores, 17.8 TFLOPS, 32 GB GDDR5, 230 GB/s bandwidth, 4x DisplayPort, 2x VGA, PCIe, 150W, MOTS+
Powerful NVIDIA GPGPU Coprocessing
The EnsembleSeries GSC6203 accelerator is a 4th generation 6U OpenVPX module powered by dual NVIDIA Pascal GPUs that has a succession of field-proven deployments in both commercial and defense programs. The GSC6203 includes a ruggedized MXM mechnanical design for mission critical deployments. Making the most of its NVIDIA Pascal (P5200E) processing technology, the GSC6203 boasts 8.9 TFLOP per GPU (17.8 TFLOP total), 16 GB memory per GPU (32 GB total) and fast internal memory speeds. The GSC6203 is manufactured to IPC-A-610 CLASS 3 and IPC 6012 CLASS 3 specifications and compliant with IPC J-STD-001 standards.
Thank you! We have received your message and will be in touch with you shortly.
FEATURES
- NVIDIA Pascal processors with ruggedized MXM mezzanines
- 32 GB of GDDR5
- PCIe Gen 3 interconnects
- Application development with OpenCL, CUDA
- MOTS+ extreme environmental protection
- Designed, built, coded and supported from trusted DMEA facilities
- See software/firmware/tool suites
