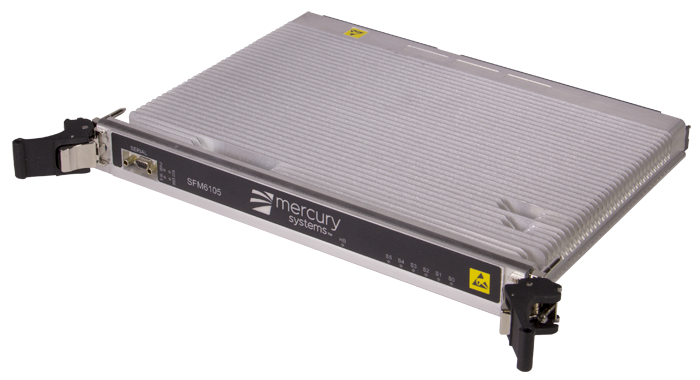

SFM6105 6U OpenVPX Network Switch Board

  • slide

Efficient, Low-latency PCIe Switching with System Management

EnsembleSeries™ SFM6105 targets the open PCIe protocol, enabling system designers to utilize PCIe as the primary high-bandwidth, low-latency data plane or sensor ingest platform and switch these data transfers efficiently and effectively. The 6U OpenVPX SFM6105 is software configurable to support various data movement architectures across a variety of applications and backplane topologies. Advanced system management functionality provides remote monitoring, alarm management, and hardware revision and health status.

For operation anywhere, the SFM6105 is available with MOTS+ technology for extreme environmental protection.

DOWNLOAD DATASHEET

BUILT FOR TODAY, READY FOR TOMORROW

By combining our OpenVPX multiprocessing and SBC modules with a complementary portfolio of storage, I/O, networking, GPUs, and software, we create customizable, rugged embedded subsystems that securely operate at the tactical edge.

FEATURES and RESOURCES
FEATURES and RESOURCES
  • 24x x4 PCIe Gen3 interfaces
  • Transparent or non-transparent on a port-by-port basis
  • Switching for data plane or expansion/sensor plane
  • Front panel serial interface
  • Backwards compatibility to Gen2 or Gen1 PCIe data rate
  • VITA 46.11 compliant IPMC system management

*X varies with PCIe Generation data rates

DOWNLOAD DATASHEET

ASK A QUESTION

HIGH-PERFORMANCE FABRICS

Process Local Data in Real-Time

Compliant with open system architectures OSAs), such as VITA 68.2 and VITA 65, our high-speed subsystem fabrics alleviate signal-channel limitations to deliver consistent, high performance bandwidth across a broad temperature range.
